Lyndahl DIY starter set with 10 SL-P HDMI connectors, assembly pliers, tester

Lyndahl SL-P starter set incl. assembly pliers, HDMI tester and 10 plugs for crimping 5 HDMI 1.4 cables in a SET

With the special Lyndahl SL-P technology, you can now easily create professional cables yourself. Similar to network technology, the HDMI plugs are crimped with special pliers to create a perfect connection in accordance with the current HDMI 1.4a standard. It goes without saying that these cables are downwards compatible with all previous HDMI standards.

A Lyndahl SL-P connection can be assembled by any reasonably technically skilled user. The starter set is used to produce 5 cables.

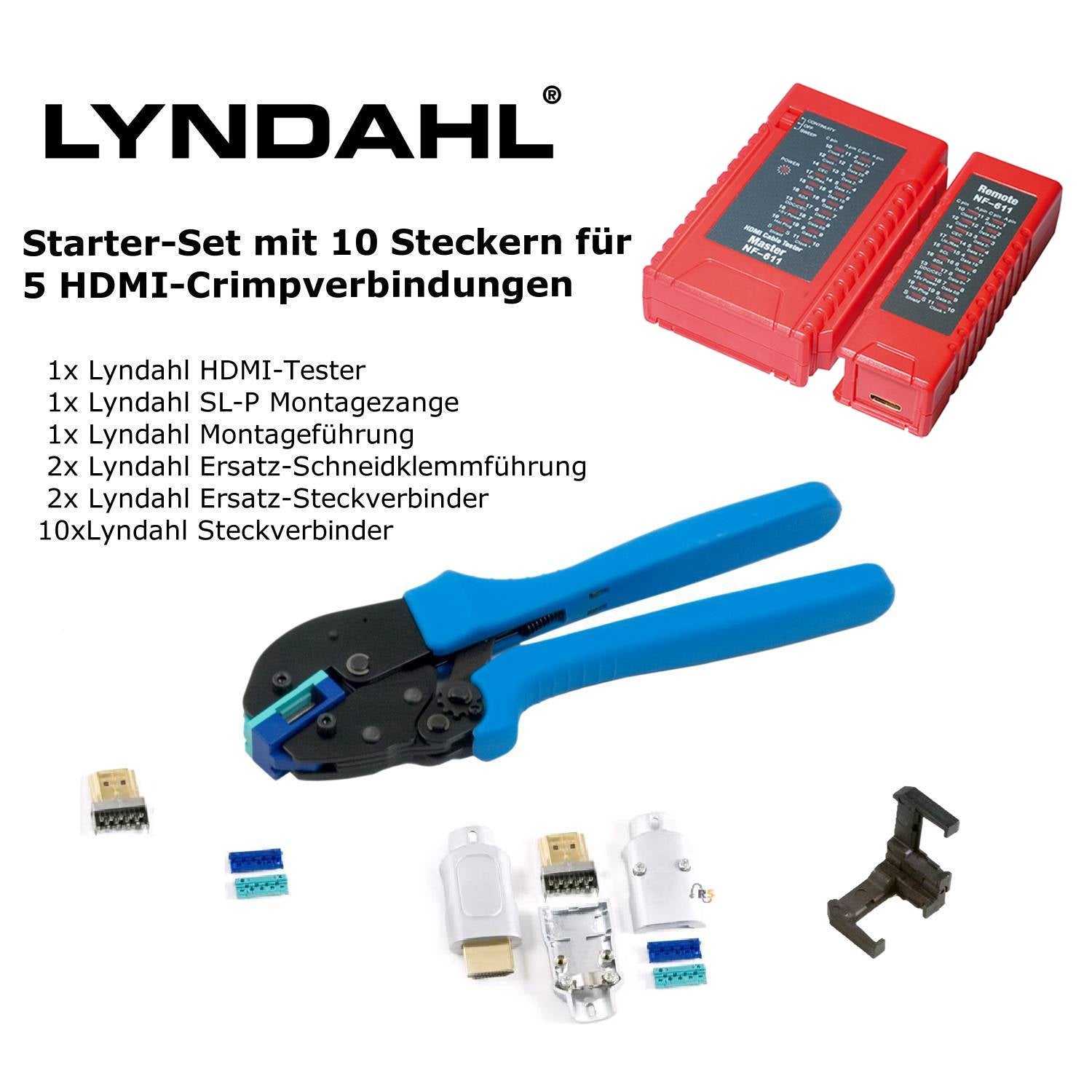

Scope of delivery:

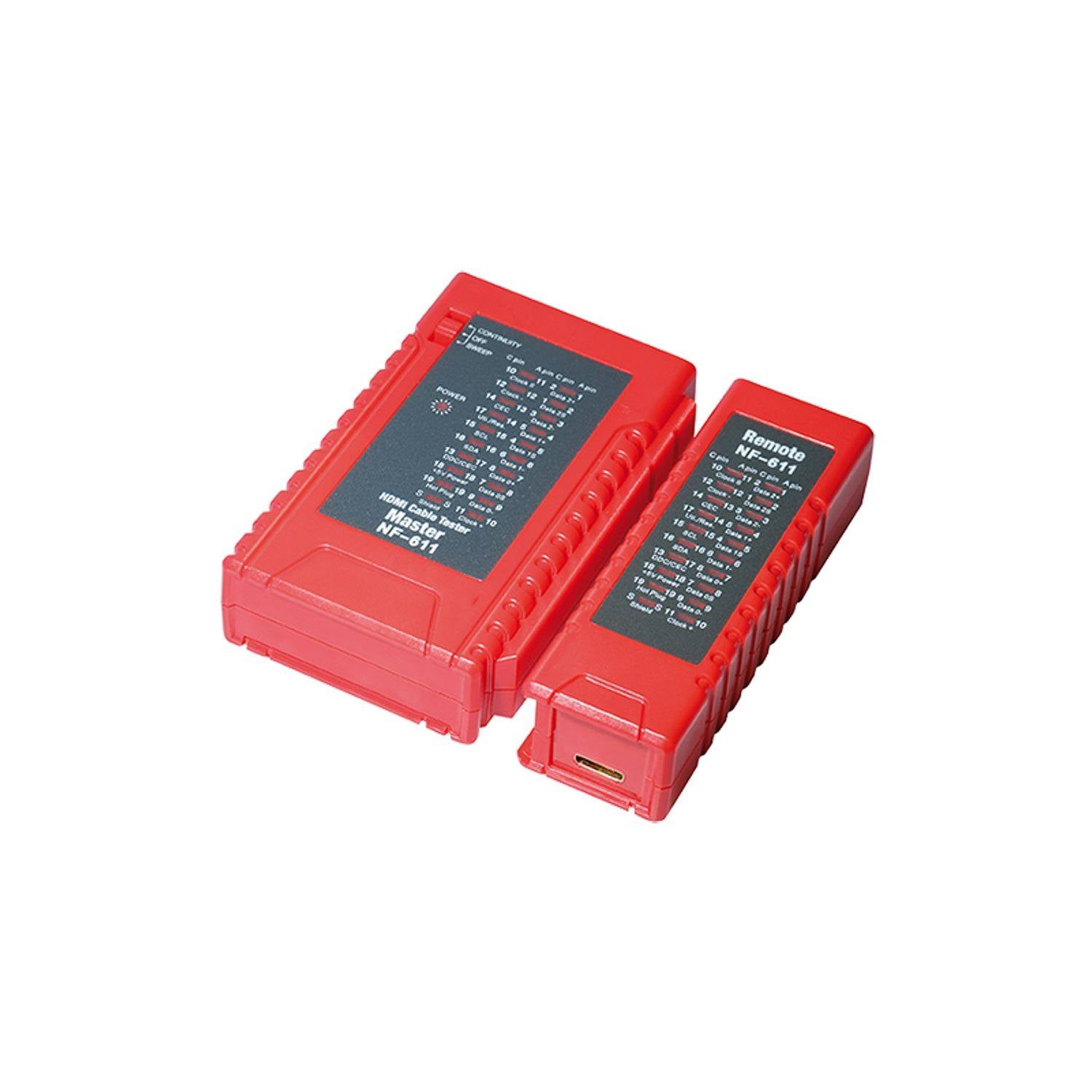

1x HDMI tester

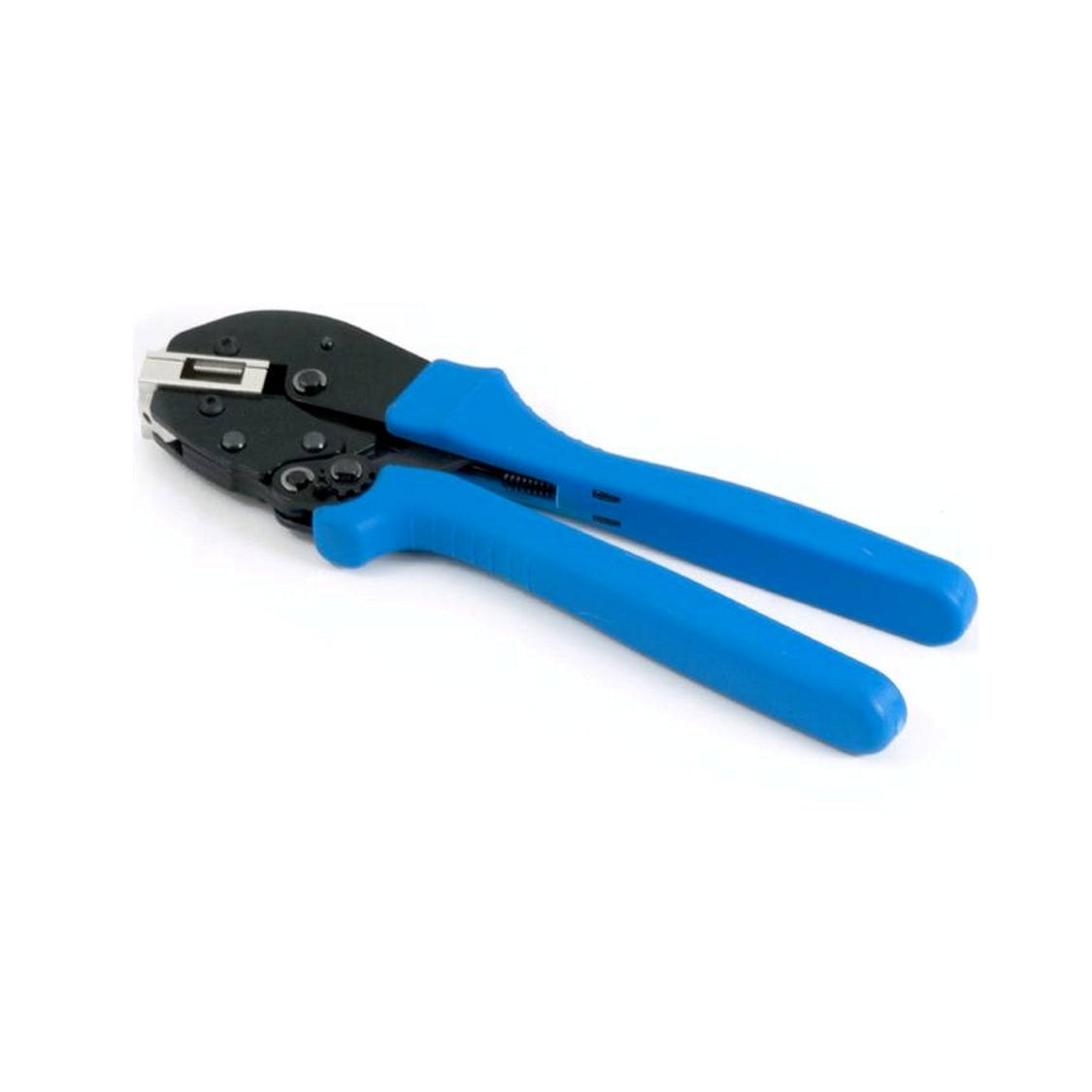

1x Lyndahl assembly pliers

1x Lyndahl assembly guide

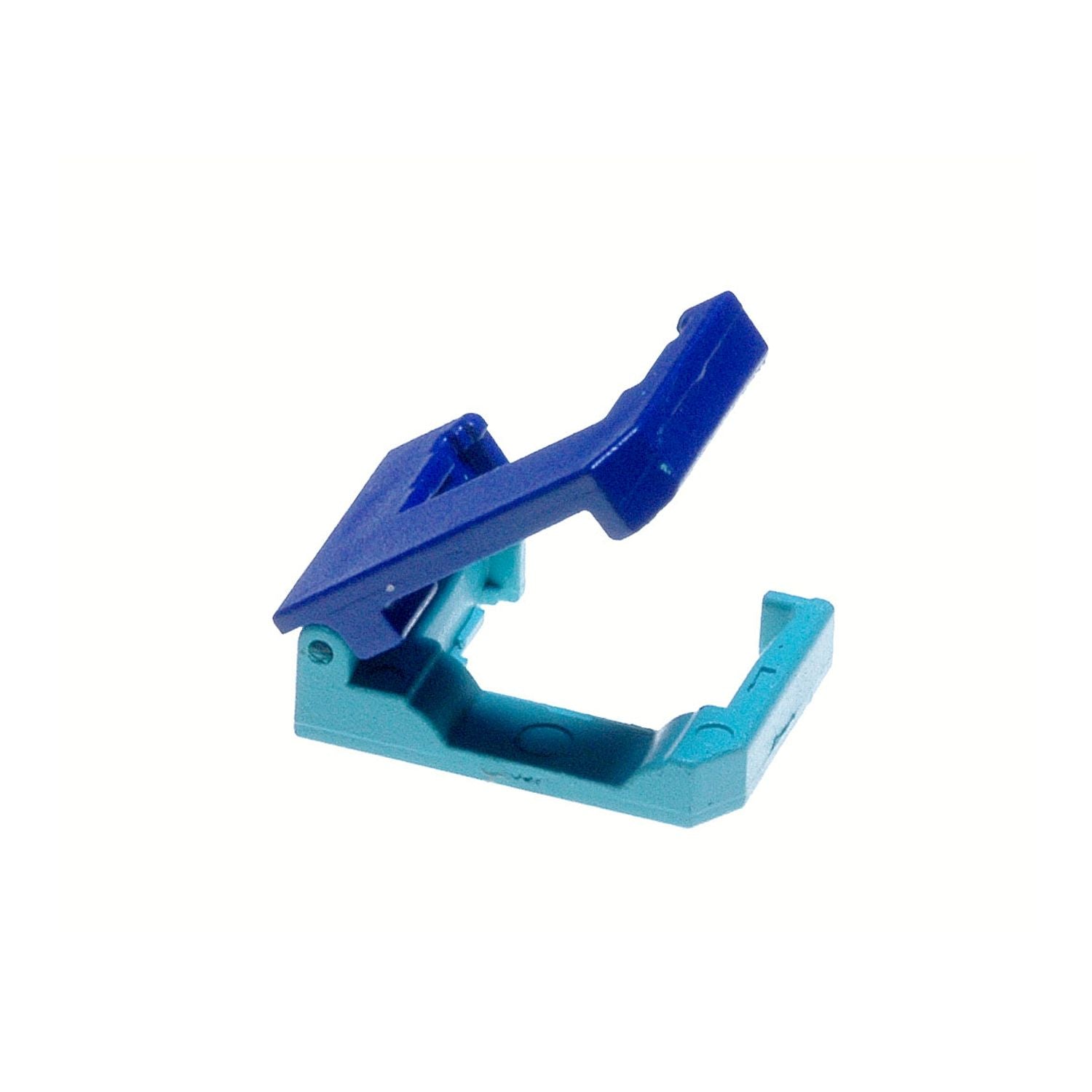

2x Lyndahl replacement insulation displacement guides

2x Lyndahl replacement connectors

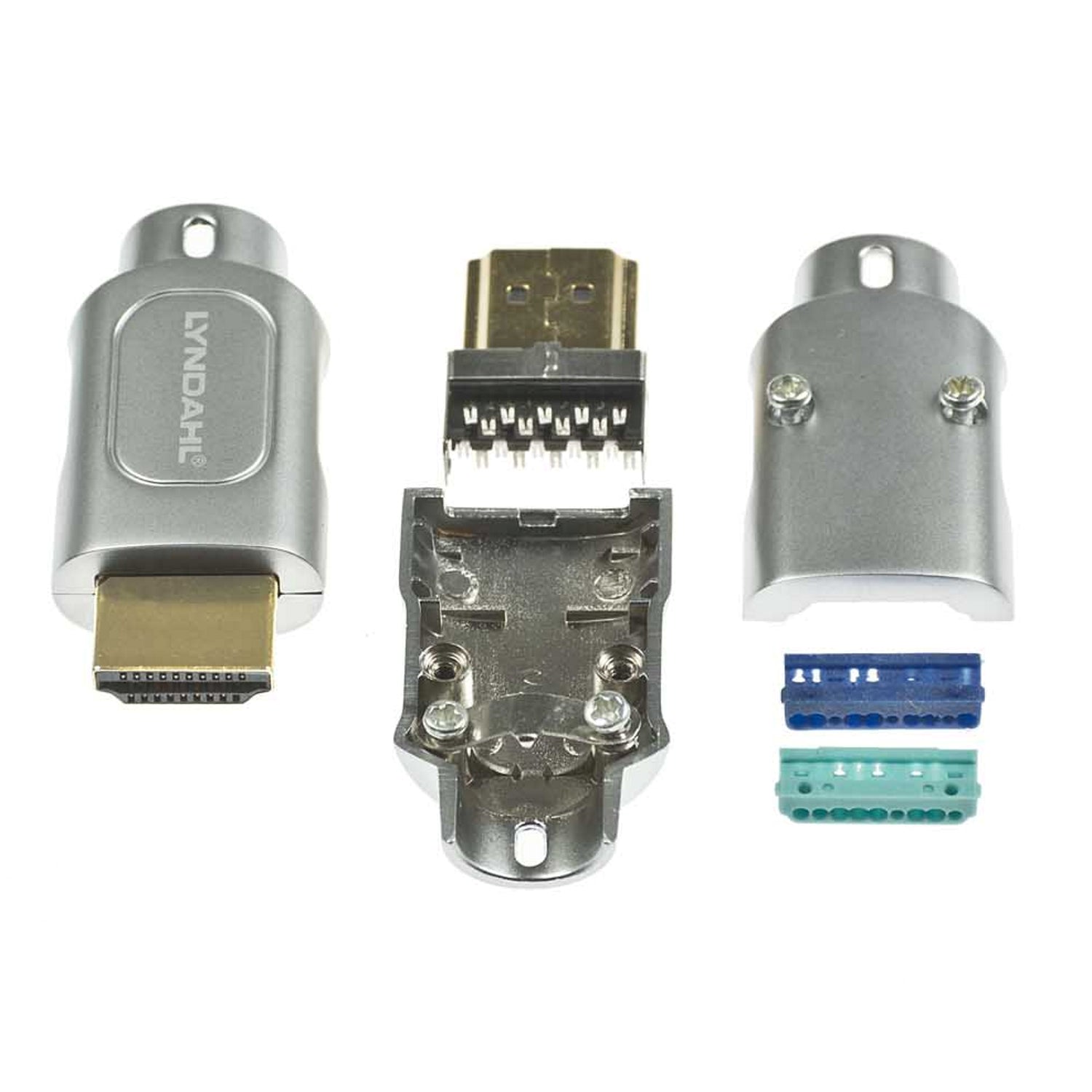

10x Lyndahl SL-P connectors


All you need is the cable in the desired length and shielding (AWG).
With 26 AWG cables, lengths of up to 15m are possible without any problems. For longer lengths or particularly high requirements, use the 24 AWG cable.
